SILT DEWATERING BAGS
Containment of sediment pumped out during dewatering operations
A silt dewatering bag is a heavy-duty geotextile filter bag used on Irish construction sites to capture sediment from pump discharge water before it reaches watercourses or drains. SSI Environmental supply both Standard and Hi-Flow silt dewatering bags nationwide, helping contractors comply with EPA Pollution Prevention Guidelines and the Water Framework Directive (S.I. 272/2009). Water is pumped directly into the bag; needle-punched fabric retains all silt, sand, and fine particles while allowing clean water to drain freely to the ground or nearby drain.
When Do You Need a Silt Dewatering Bag?
- Foundation and basement excavation dewatering
- Pipeline and utility trench dewatering (water, gas, telecoms)
- Road and motorway drainage works
- River and canal dredging operations
- Any site where pump water contains suspended solids
With the ever increasing volume of Civil Engineering projects in Environmental Sensitive Locations the draining of heavily silt contaminated water can be an issue. There is a growing concern in relation to silt contamination in our local rivers as its negative impact is becoming more apparent on eco-systems.
Irish Regulatory Compliance
Under Irish environmental law, allowing silt-laden water to escape a construction site untreated is a prosecutable offence. Relevant legislation and guidance includes:
- EPA Pollution Prevention Guidance — Construction Activities
- Water Framework Directive (S.I. No. 272 of 2009)
- Local Authority Construction & Demolition Waste Guidelines
- IPC Licence conditions for large infrastructure projects
Silt Dewatering Bags provide an effective way to collect harmful sediments from dirty water pumped out of excavation works (such as foundations, pipe line construction, water, sewer and utility trenches, waterways and lakes) that would otherwise pollute the surrounding environment.
Need of Silt Trap
It is a legal requirement to prevent silt water from leaving site untreated, and a finable offence if you do not take appropriate pollution control measures. The Environment Agency Pollution Prevention Guidelines PPG6, in summary, require that the majority of suspended solids (gravel, sand, and silt) must be removed from site water before it is discharged into a drain, sewer or watercourse.
Consideration needs to be given when it comes to choosing the correct De-Watering bag. High performance from working with the correct bag will benefit projects on many fronts. For advice based on experience, Why not let SSI Environmental share what it has learnt from working on a broad variety of civil projects.
The Dewatering Bag provides an economical and effective solution. By pumping water into the bag, contaminants are trapped and filtered so only water escapes to the ground below or nearby storm drains.
Key Features:
- Detains sediment, offering a combination of benefits not available in alternative silt dewatering dirt bags.
- Standard and High Flow designs available depending on site specifics.
- Contributes to the ever improving standards associated with environmental best practices.
Considerations to take into account are pump size and operational space ? Talk to a member of SSI staff
Compliance:
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Silt De-Watering bags are designed to retain sediment and silt, while allowing the remaining clear water to flow freely back into the environmental surrounds. The process is very straight forward, however consideration does need to be given to the size of pumps being used and in some cases the quality or make up of the waters content. SSI will lend advice on this based on experience gained from working on various civil projects.
The actual setup and engagement of Silt De-Watering Bags is straight forward.
- Set up the Dewatering Bag in location where works are to take place. This can include placement in Skips or on flat back transportation vehicles. It the majority of cases setup is simply on the ground.
- Attach Hoses. All dewatering bags are typically designed to accommodate hoses up to four inches (6″) in size. Once these hoses are attached, your silt laden material can be pumped into the bag for dewatering. Pump Silt Materials into the Bag and allow Dewatering to Occur. As your materials are pumped inside the bag, water will begin to flow out of the bag. This occurs through the use of varying needle-punched fabrics which allows only water to flow out and prevents all other silt materials from leaving.
- It is worth noting that when the De-Watering Bags are full with silt and other Dirt debris they can be very heavy. With that in mind we do recommend that contingencies are made as part of the overall preparation on such jobs. Again a call to SSI Environmental will facilitate advice based on learned experiences.

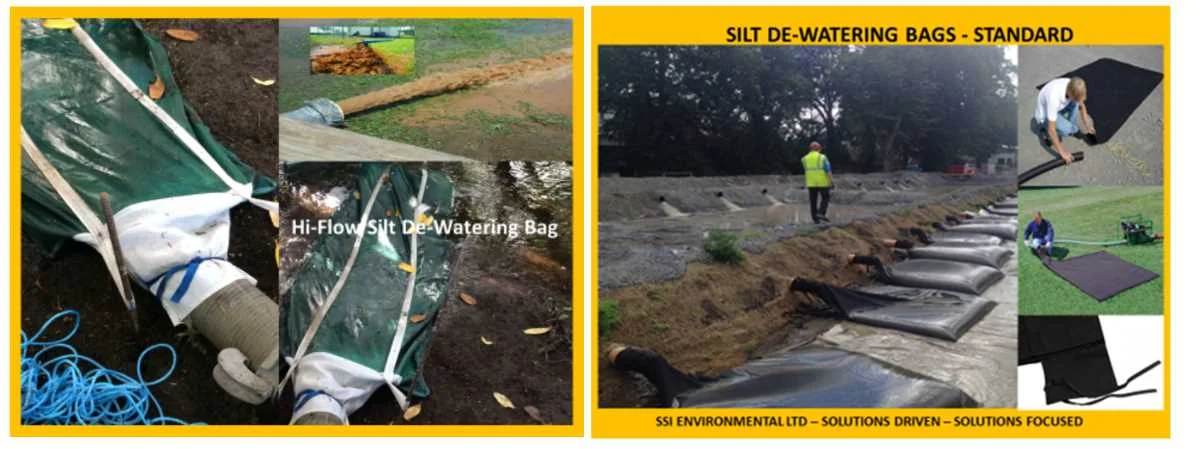

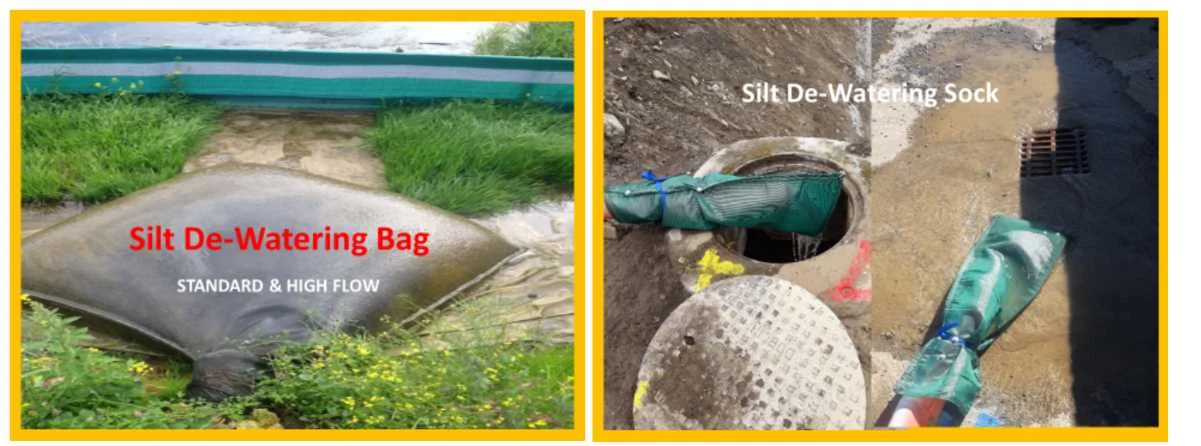

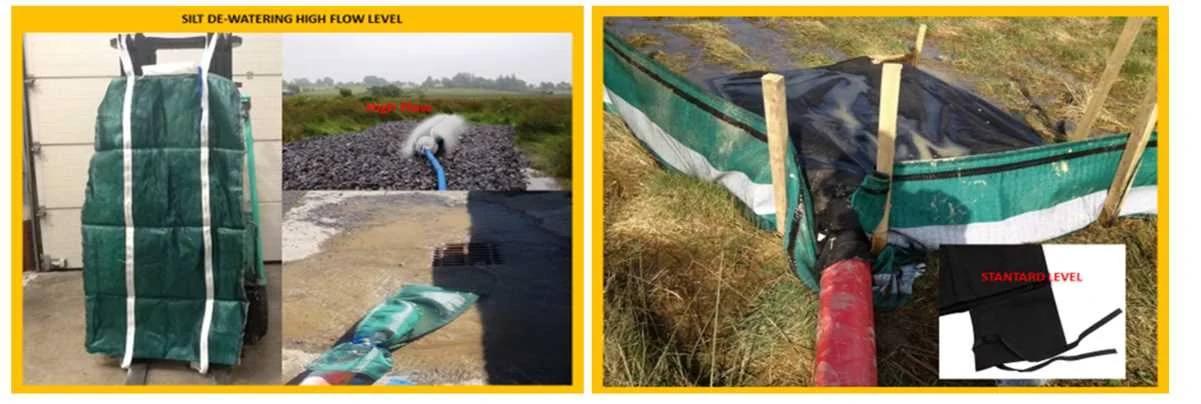

- Types of Bags – Standard – Hi Flow – Pipe. Advice given on request.
WHAT IS SILT
- fine sand, clay, or other material carried by running water and deposited as a sediment, especially in a channel or harbour
- Eroded soil from construction sites is carried to streams and lakes where it causes (1) excess turbidity that harms aquatic life, increases water-treatment costs, and makes the water less useful for recreation; and (2) sedimentation that clogs drainage ditches, stream channels, water intakes, and reservoirs is not beneficial when not controlled.
- How Does Sediment Affect Ecosystems? No ecosystem is entirely free of sediment. In aquatic environments, its presence can threaten the health of ecosystems. Sediment can cloud the water, which in turn can negatively impact the plants and animals of these places.
To enquire about this product – call us on 01 8665676 / 087-9367065 or contact us here
FAQ
Q: What is a silt dewatering bag used for on construction sites?
A: A silt dewatering bag captures suspended sediment from water pumped out of excavations, trenches, and drainage works. The geotextile fabric traps silt while allowing clean water to escape, preventing pollution of rivers, drains, and groundwater — a legal requirement under Irish EPA guidelines.
Q: What is the difference between a standard and hi-flow dewatering bag?
A: Standard bags suit smaller pumps (up to 50mm) and moderate silt loads on utility trench work. Hi-Flow bags are engineered for larger pumps (up to 100mm+) and high-volume dewatering on major civil projects such as motorway drainage or river diversions.
Q: How do you set up a silt dewatering bag?
A: Place the bag on flat ground or inside a skip. Attach pump hose to the inlet connector (up to 4″/100mm). Pump silt-laden water into the bag. The needle-punched fabric filters silt internally while clean water drains through the base. Once full, bag and retained solids can be removed to a licensed disposal facility.
Q: Are silt dewatering bags reusable?
A: Standard silt dewatering bags are single-use due to the retained sediment load. Once full, the bag and captured silt waste should be disposed of at a licensed facility. SSI Environmental can advise on disposal options.
Q: Where can I buy silt dewatering bags in Ireland?
A: SSI Environmental supply silt dewatering bags to contractors and civil engineers throughout Ireland from their Dublin depot. Call 01 8665676 or enquire online for same-week dispatch.
